Products / Cold Weather Uniform Sets
A cold weather uniform set is bought as one line on a tender and issued as one outfit, but it is produced as several garments that have to agree with each other. That is where sets fail. A jacket and trouser in the same nominal size can leave a gap at the waist, a mid layer can bind under a shell in the shoulders, and a set that was developed garment by garment can put the wearer in a jacket that will not close over the layer that was specified to go underneath it. This product is developed as a set: the layer stack is agreed first, then each garment is patterned against the others, sized as a system, colour-matched across fabric types and labelled so it can be received, issued and reordered as one unit.

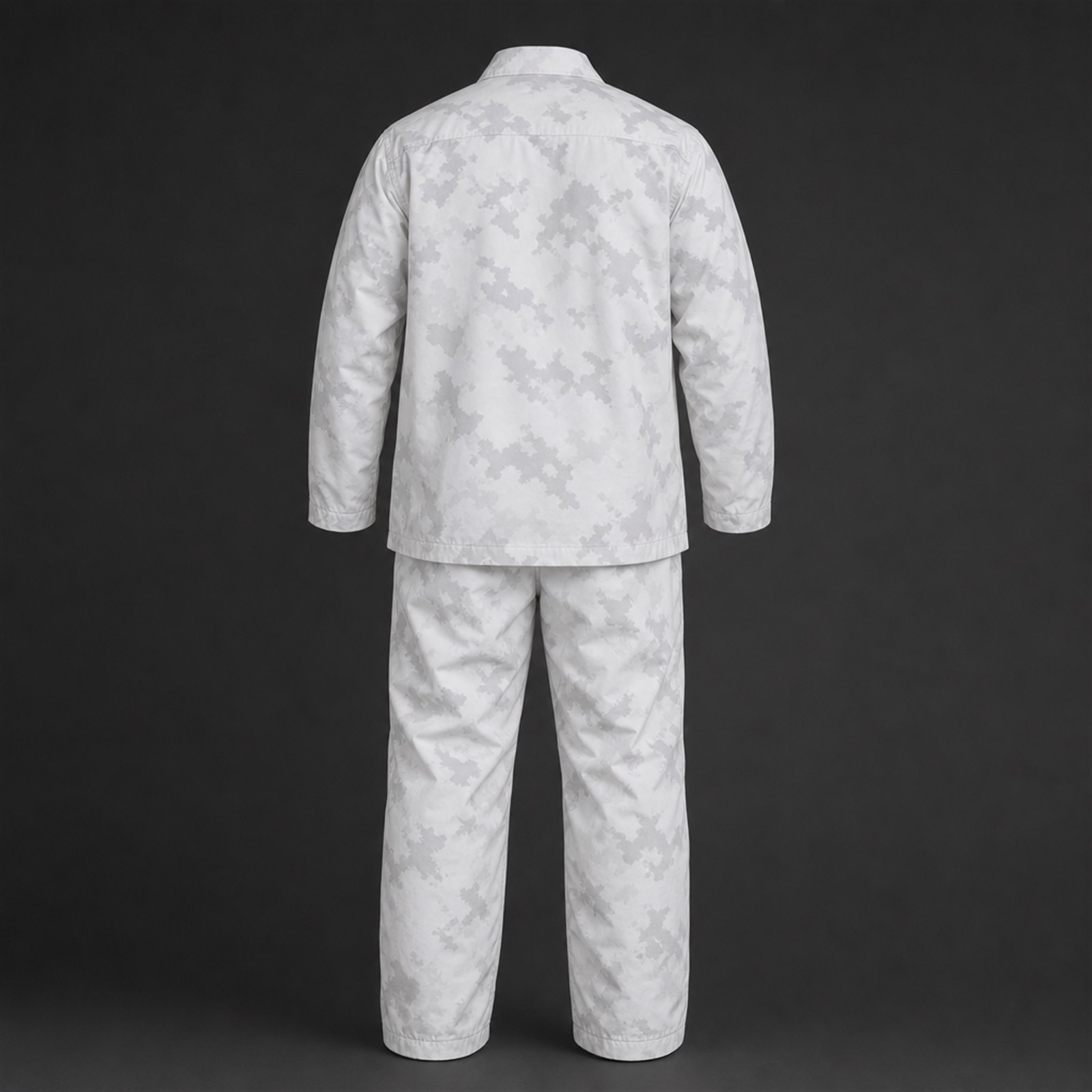

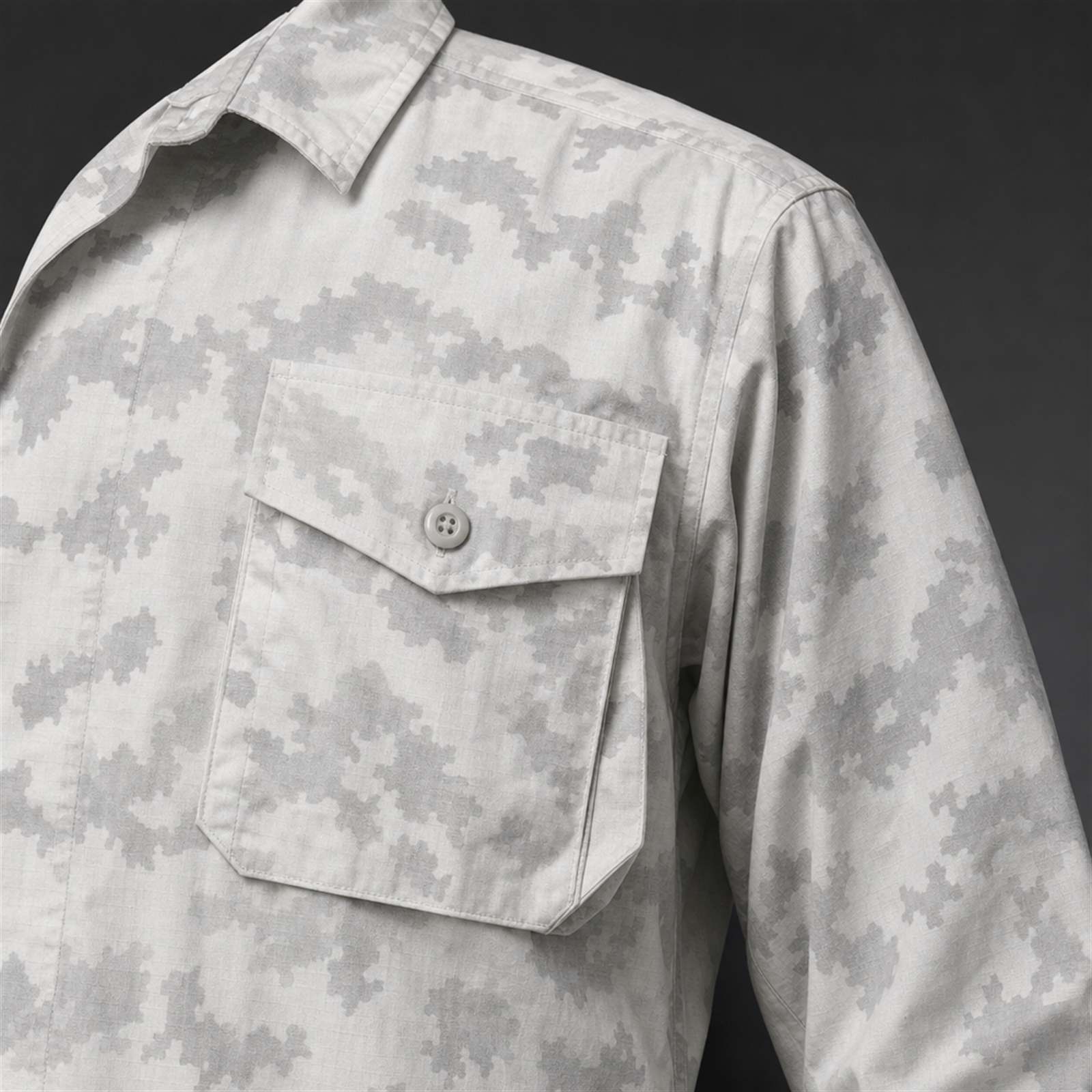

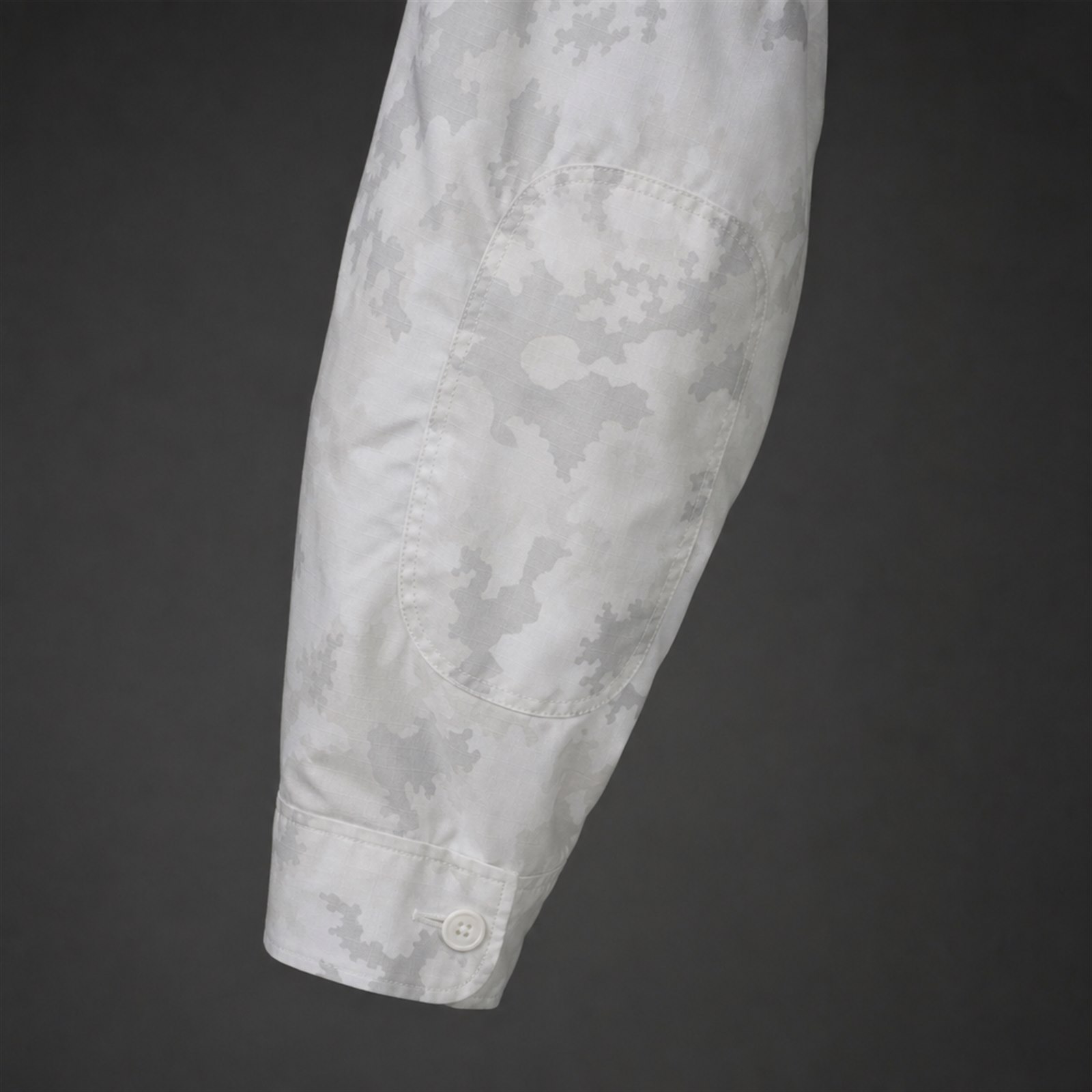

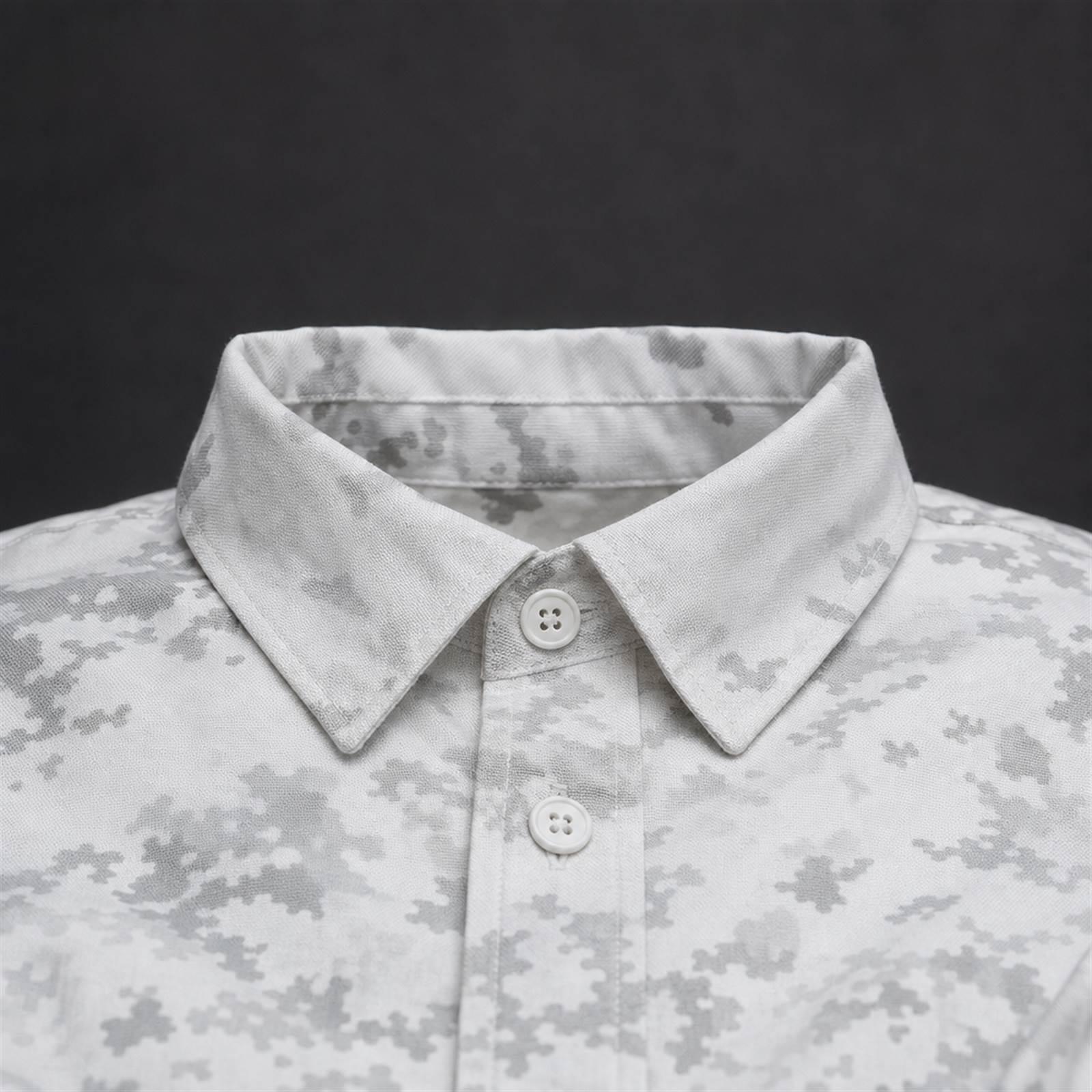

Gallery
Design purpose
Deliver a cold weather outfit as one specified system rather than as separate garments that happen to share a purchase order, so that fit, sizing, colour and interfaces agree when the set is issued.
Applications
Interactive map
Cold Weather Uniform Set: select a marker to see what can be specified at that part of the garment — all 10 mapped areas are also listed in full below the map, so nothing is hidden behind an interaction.
Customization by garment part
Select a marker to see the customization options available at that part of the garment. Every option below is a manufacturing decision you control.

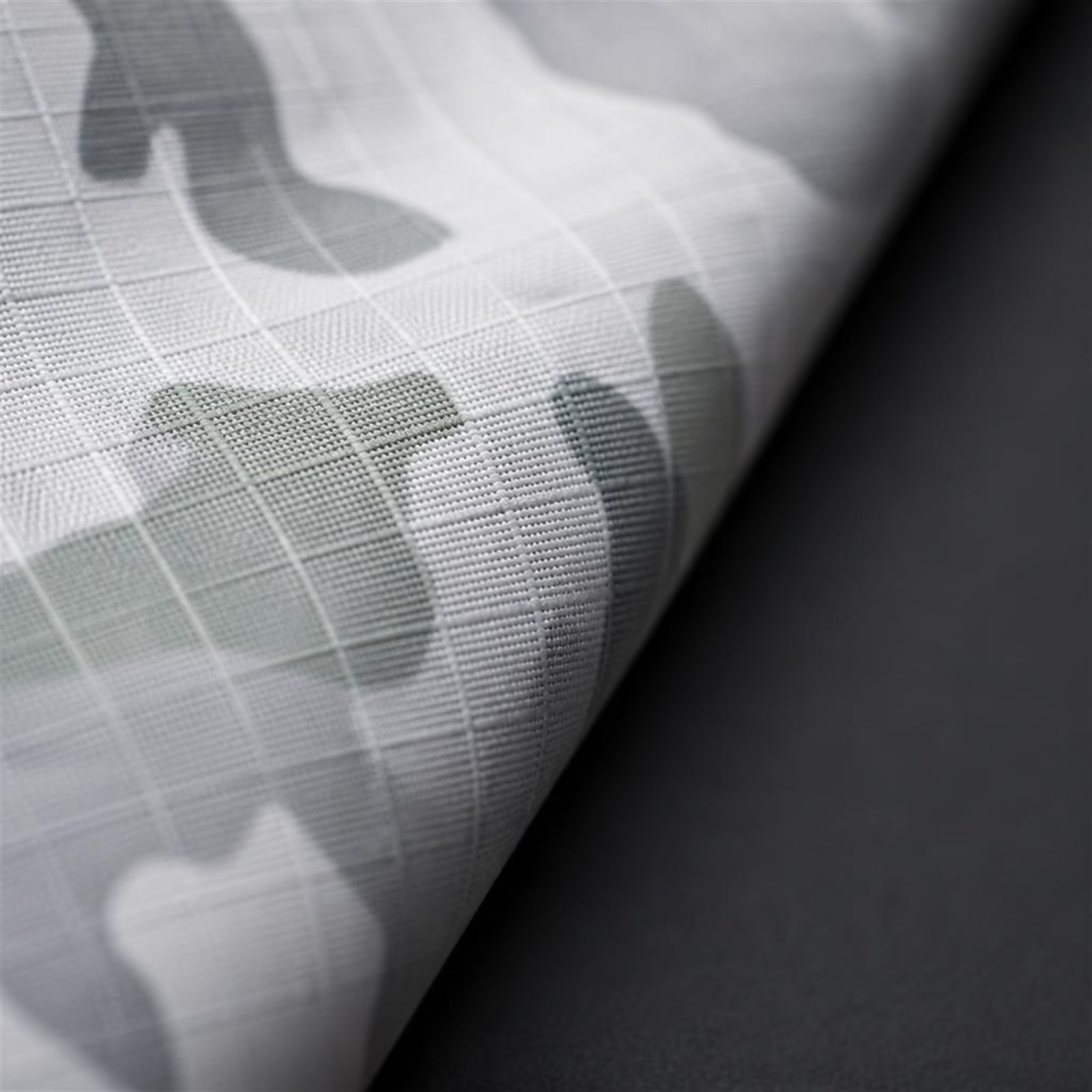

Materials
4 material options for Cold Weather Uniform Set, specified per garment area — a single fabric cannot serve heat management and abrasion resistance at the same time.
Set composition
The composition is agreed before any garment is patterned, because the layer stack decides the sizing allowance for every piece in the set.
Outer layer
The outer layer carries the weather protection for the whole set, so its specification is set against the wettest and windiest condition the programme expects.
Warmth layers
Where the buyer issues the warmth layers as part of the set, the outer garment must be patterned over them. Where they are bought separately, the interfaces are documented as open points rather than assumed.
Lower half
The waist of the jacket and the waist of the trouser meet, and that interface is where a set most often leaves a gap. It is developed as a pair, not as two garments.
Construction
How each of the 8 parts of Cold Weather Uniform Set is assembled, and why that choice was made.
Layer stack agreement first
Before any garment is patterned, the composition the wearer will actually use is written down: what is worn while moving, what is added when static, what comes off indoors. Every sizing allowance in the set follows from that document.
Jacket and trouser developed as a pair
Jacket back length, hem and trouser rise are set together so the two do not gap at the lower back when the wearer bends, and so the jacket does not sit on the trouser pockets in a way that lifts it when the wearer moves.
Sizing the set as a system
Each garment in the set is sized against the layers beneath it, and the size set is fitted as a complete outfit on a wearer. A set is approved only when the whole stack has been tried, not when each garment passes on its own.
Interface points documented
Cuff-to-glove, leg opening-to-boot, hood-to-headwear and waist-to-trouser interfaces are recorded as specification points for the set, so an interface that cannot be fixed yet is marked open rather than guessed.
Colour matched across fabric types
A set usually mixes face fabrics — a laminated shell, a softshell mid layer, a knit base layer. Each takes colour differently, so matching is agreed as a shade band per fabric and verified on lab dips rather than assumed from a single Pantone reference.
Label and issue identification
Main labels, care labels, size marking and any issue or asset identification are applied consistently across every piece in the set, so the outfit can be received, stored and reordered without ambiguity.
Consistent construction across the set
Stitch specification, thread, hardware family and trim selection are harmonised across the garments so the set reads as one issue rather than as pieces from different sources.
Packing as a set
Where the buyer issues by size rather than by garment, garments are packed and marked by set so the receiving process does not have to regroup them before issue.
Features
The 6 functional features of Cold Weather Uniform Set each exist to solve a specific problem in use, and where a feature is a trade-off rather than a pure gain that is stated.
The composition is agreed before patterns are cut, which is what stops the common failure of a jacket that will not close over the layer it was specified to cover.
The size set is tried as a complete stack on a wearer. A set approved garment by garment can still be unusable once all of it is worn together.
Jacket hem and trouser rise are developed together so the lower back stays covered in the working position rather than only while standing straight.
Cross-fabric matching is handled with a shade band agreed per fabric, and we will say where an exact match between two fabric types is not realistic rather than promise it.
The whole outfit is written into a single manufacturing specification, so a repeat order reproduces the set rather than one piece of it.
Labelling, size marking and set-level packing are specified against how the buyer receives and issues the goods, not against how they are easiest to pack.
Customization
12 customization lines for Cold Weather Uniform Set: branding, colour, camouflage and packaging are all part of the specification, and every item is confirmed on the pre-production sample.
Set composition
Outer layer
Warmth layers
Lower half
Sizing approach
Colour approach
Insulation
Closures and hardware
Interface decisions
Labelling
Packing
Documentation
Colour
Camouflage
Sizing
Set sizing is developed in two steps. First, the layers the wearer will use are written down, and each garment is sized against the stack beneath it. Second, the size set is produced as a complete outfit and fitted on a wearer, because a set can pass garment by garment and still fail when worn together. Where the buyer has an existing uniform sizing standard, the set is developed against that standard so the winter issue stays consistent with everything else, and the layering allowance is added as a deliberate grade rather than as an undocumented change.
Branding
Your patterns, your set composition, your specification document, your hardware family and your packaging. Labels, trims and cartons can be left blank, so the outfit ships as your own product with a single specification held on file against every repeat order.
Logistics
Sample development
Development of Cold Weather Uniform Set runs in 7 stages, each risk removed before the next step commits cost.
Layer stack agreement
We write down the composition the wearer will use before anything is patterned, including what is worn while moving, what is added when static, and what is removed indoors.
Specification review per garment
Face fabrics, insulation builds, closures, hardware family and interface decisions are agreed for each garment in the set, with the shared elements called out explicitly so they are not decided twice and differently.
Pattern development as a set
Patterns are developed on the buyer's size range with layering allowance across the set, and jacket hem and trouser rise are set against each other rather than independently.
Proto samples
First samples of each garment are produced and reviewed together so interfaces — cuff, waist, leg opening, hood — can be assessed in the combination the wearer will actually use.
Set fit sample
Revised samples are fitted as a complete stack on a wearer while walking, kneeling, sitting and reaching, which is the only stage at which a set can be properly judged.
Size set across the range
A set across the size range is produced so grading of every garment is confirmed, and the interface between jacket and trouser is checked at the extremes of the range rather than at the base size only.
Sealed samples
Each garment in the approved set is sealed and retained as the reference for inline and final inspection, together with a single specification document covering the whole outfit.
Bulk production
7 stages of bulk production for Cold Weather Uniform Set — where the approved specification is either held or lost.
Material receipt and inspection
Face fabrics, insulation lots, linings, closures and trims are checked against the sealed samples for every garment in the set, and colour is verified per fabric against the approved shade band.
Cutting across the set
Panels for all garments are cut to the approved patterns with print or camouflage placement controlled on the marker, so the set matches across pieces as well as within each one.
Garment assembly
Each garment is assembled to its approved construction, with sealed seams finished before closure and, for insulated pieces, insulation mapped to the approved zone plan.
Interface verification
The jacket and trouser from the same size are checked against each other during the run, so the waist interface and layering allowance are confirmed in production rather than assumed from the sample stage.
Inline inspection
Garments are measured against approved tolerances at defined points through the run, per garment, so a drift in one piece of the set is caught before the outfit ships.
Finishing and labelling
Main labels, care labels, size and issue marking are applied consistently across every garment, and loose threads, hardware function and finish are completed to the sealed samples.
Final inspection and set packing
Final inspection follows the approved specification and the AQL agreed with the buyer, and approved goods are packed by garment size or by set according to the buyer's instructions.
Quality control
The 7 checks applied to Cold Weather Uniform Set, each measured against an agreed standard rather than against opinion.
Incoming material check
Every face fabric, insulation lot, lining, closure and trim used in the set is recorded against its specification, and lots are retained so a repeat order can be matched.
Colour verification per fabric
Each fabric type in the set is compared with its approved shade band and the sealed sample under agreed lighting, because a single reference cannot represent several fabric types.
Construction inspection per garment
Seam and seal integrity, insulation mapping and closure assembly are inspected for each garment against its own approved construction, before the set is packed.
Measurement check per garment
Critical dimensions are measured against approved tolerances for each garment in the set during the run, including the graded sizes rather than only the base size.
Interface check
Jacket and trouser from the same size are checked together for the waist interface and layering allowance, and this check is repeated at more than one point in the size range.
Function testing of closures
Zips, flaps, adjusters and glove-operable hardware are operated repeatedly on sampled garments to confirm they open, close and stay closed in use.
Final inspection and records
Final inspection results, inspection records and retained samples for the whole set stay with the order, so a repeat is produced against evidence rather than against memory.
Specifications
18 specification rows for Cold Weather Uniform Set: only confirmed items are listed, so a row that depends on your programme is omitted rather than filled with an estimate.
| Product type | Cold weather uniform set issued and specified as one outfit |
|---|---|
| Set composition | Two-piece, three-layer or four-layer, to buyer specification |
| Outer layer | Uninsulated shell, insulated outer jacket, long-line parka or softshell, to specification |
| Warmth layers | Fleece or knit mid layer, insulated mid layer, thermal base layer top and bottom, or removable liner, to specification |
| Lower half | Insulated field trouser, lined duty trouser or waterproof over-pant, to specification |
| Insulation | Mapped or uniform, fixed or removable, to specification |
| Layering allowance | Each garment sized against the layers beneath it and confirmed as a stack |
| Waist interface | Jacket hem and trouser rise developed together to avoid a lower back gap |
| Closures | Shared hardware family across the set, glove-operable where required |
| Interfaces | Cuff-to-glove, leg opening-to-boot, hood-to-headwear, recorded as specification points |
| Colour | Shade band agreed per fabric type, with lab dip approval before bulk |
| Camouflage | Buyer artwork camouflage with a print standard approved before bulk |
| Labelling | Main label, care label, size and issue marking applied consistently across the set |
| Size range | EU or US runs including extended sizes, developed against the buyer's uniform standard where one exists |
| Packing | By garment size or by set, with master carton marking to specification |
| Documentation | Single specification document covering every garment in the set |
FAQ
Because the failures happen between the garments. A jacket and trouser in the same nominal size can still leave a gap at the waist, and a mid layer can bind under a shell in the shoulders even when both garments are individually correct. A set is developed with the layer stack agreed first and each garment patterned against the others, so the interfaces are a specification decision rather than something discovered on issue.
We do not publish temperature ratings, and we would advise caution with any supplier that issues them casually. How warm a set feels depends on activity level, wind, humidity, which layers are worn, how long the wearer is exposed and how the garments fit. What we do instead is specify the composition to the coldest condition your programme expects and document it, so the set is repeatable and inspectable. Any comfort claim should come from your own field trial with the actual stack.
No. We develop against your existing standard so the winter issue stays consistent with everything else your wearers are given. The layering allowance is added as a deliberate, documented grade against that standard rather than as a separate size range, which is what prevents the winter set being issued one size up on guesswork.
By treating each fabric type separately. A laminated shell, a softshell and a knit take dye differently, so a single Pantone reference cannot describe all three. We agree a shade band per fabric, verify it on lab dips, and tell you where an exact match between two fabric types is not realistic rather than promising it and correcting it at bulk.
Yes, and it is a common way to build a programme. The important part is that the interfaces are decided at the start even if the garment is bought later: cuff sizing against the glove, the leg opening against the boot, and the jacket hem against the trouser rise. Interfaces that are not fixed yet are recorded as open points in the specification rather than assumed.
Per garment, plus one check that only a set can have. Each garment is measured and inspected against its own approved specification, and then the jacket and trouser from the same size are checked against each other for the waist interface and layering allowance. That interface check is repeated at more than one point in the size range, not only at the base size.
