Products / Cold Weather Shell Jackets
The shell carries no warmth of its own, and that is the point of it. Its job is to stop wind reaching the insulation underneath, keep wet snow, sleet and rain out at seams and openings, and still let the moisture the wearer produces escape before it condenses inside the layers. Because the shell is judged by what it keeps out rather than by what it provides, the specification is dominated by construction: seam treatment per position, storm flaps behind closures, cuff and hem sealing, and venting that can be opened during exertion. Get those right and a thin shell makes every layer beneath it work better. Get them wrong and the same shell makes a well-insulated system feel cold and damp.
Gallery
Design purpose
Build an outer shell on the buyer's pattern that seals wind and precipitation out of the layer stack without trapping moisture inside it, and document the seam, closure and venting decisions so a repeat order reproduces the same garment.
Applications
Interactive map
Cold Weather Shell Jacket: select a marker to see what can be specified at that part of the garment — all 10 mapped areas are also listed in full below the map, so nothing is hidden behind an interaction.
Customization by garment part
Select a marker to see the customization options available at that part of the garment. Every option below is a manufacturing decision you control.
Materials
4 material options for Cold Weather Shell Jacket, specified per garment area — a single fabric cannot serve heat management and abrasion resistance at the same time.

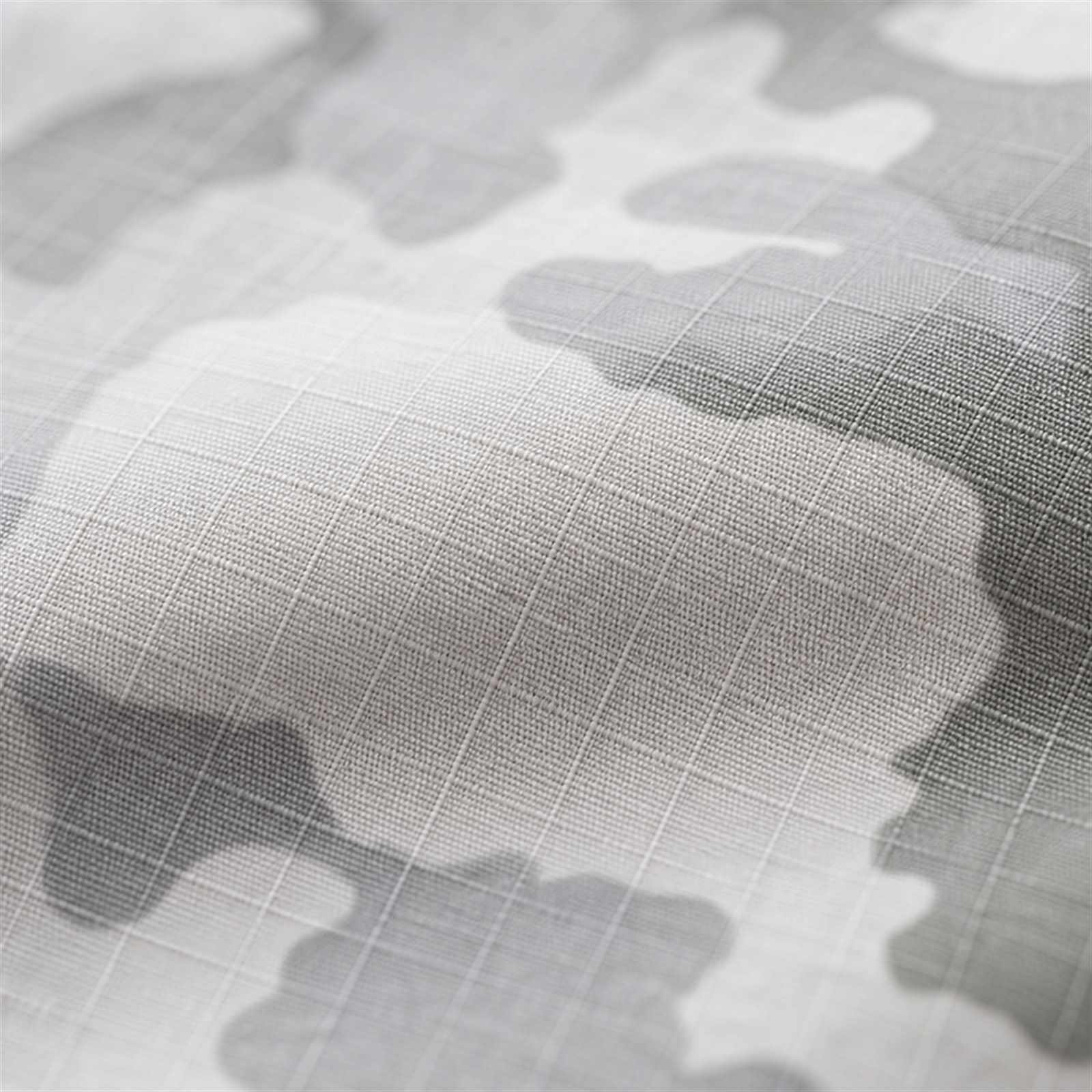

Shell fabric
The fabric choice follows the environment, not the temperature. A fully waterproof shell that traps moisture is the wrong specification for dry cold and sustained movement, and a water-resistant shell is the wrong specification for wet snow.
Seam strategy
Which seams are sealed is a per-position decision. Sealing every seam adds stiffness and cost; sealing too few leaves the shoulder and hood as the first leak points.
Closure and opening protection
Openings lose more heat and admit more water than the fabric does. Venting is specified so the wearer can dump heat without opening the front.
Cuff, hem and hood interfaces
These interfaces are agreed together with what the buyer issues. An interface assumed wrong is discovered in the field, not in the sample room.
Construction
How each of the 8 parts of Cold Weather Shell Jacket is assembled, and why that choice was made.
Pattern and layering allowance
The shell is cut to go over the buyer's mid and insulation layers without compressing them, so chest, shoulder, back length and sleeve length allow for the layer stack the wearer will actually use. This is confirmed on a wearer in the full composition, not on a single garment.
Seam construction by position
Exposed shoulder, hood and upper sleeve seams are treated differently from internal seams. Where a seam is sealed, the sealing method, tape width and finish are written into the tech pack rather than left to the line.
Front closure assembly
Zip specification, internal storm flap depth, chin guard and any external flap are built as one assembly. The flap must lie flat when the zip is closed and still open under gloves.
Ventilation
Underarm vents are positioned in the pattern so the opening sits behind the seam line and cannot be seen from the outside. Where chest vents are used, they are placed clear of strap and belt paths.

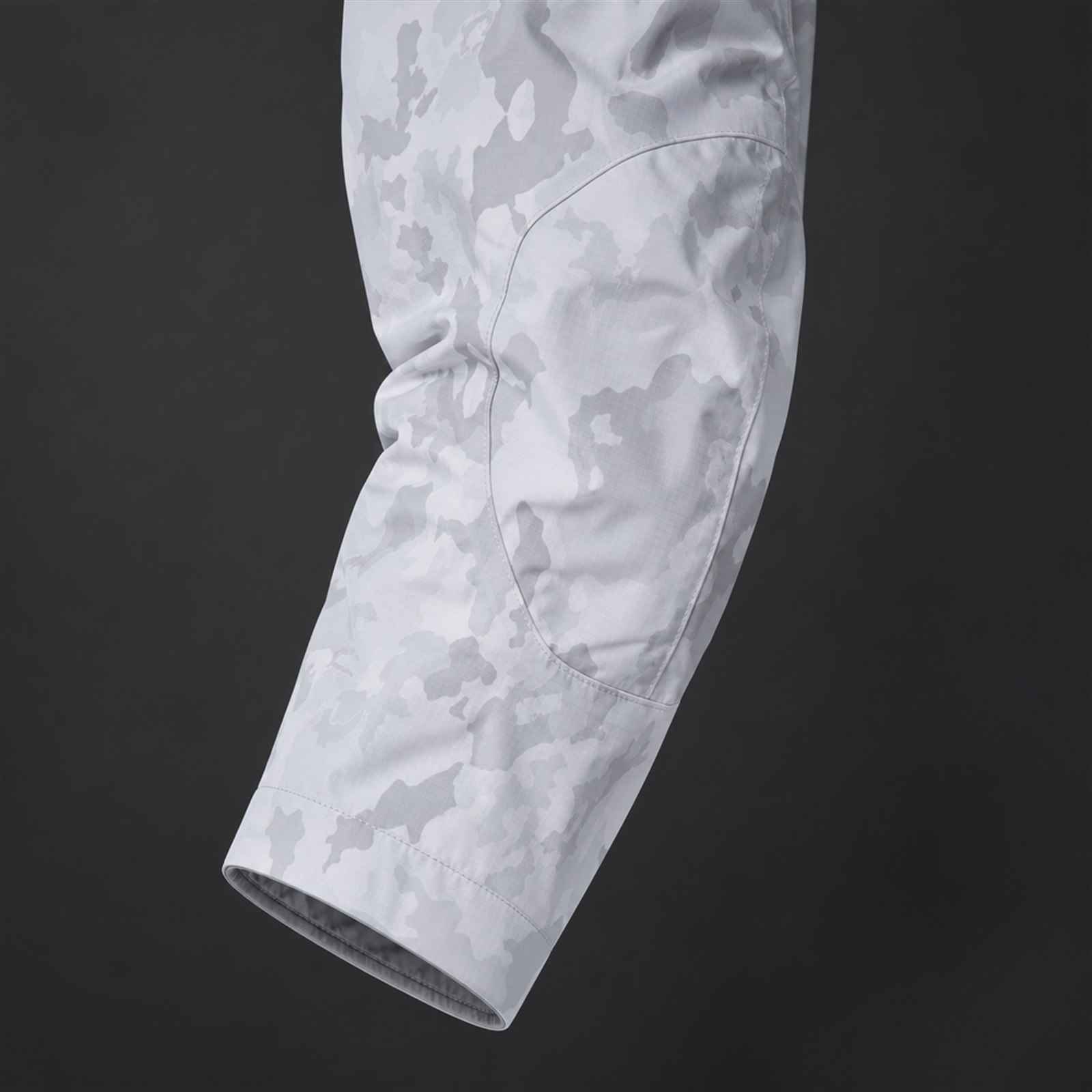

Cuff and hem sealing
Adjustment hardware is specified so it can be operated with gloves on. Cuff openings are sized against the glove the buyer issues, and the hem seal is designed not to ride up when the wearer reaches or bends.

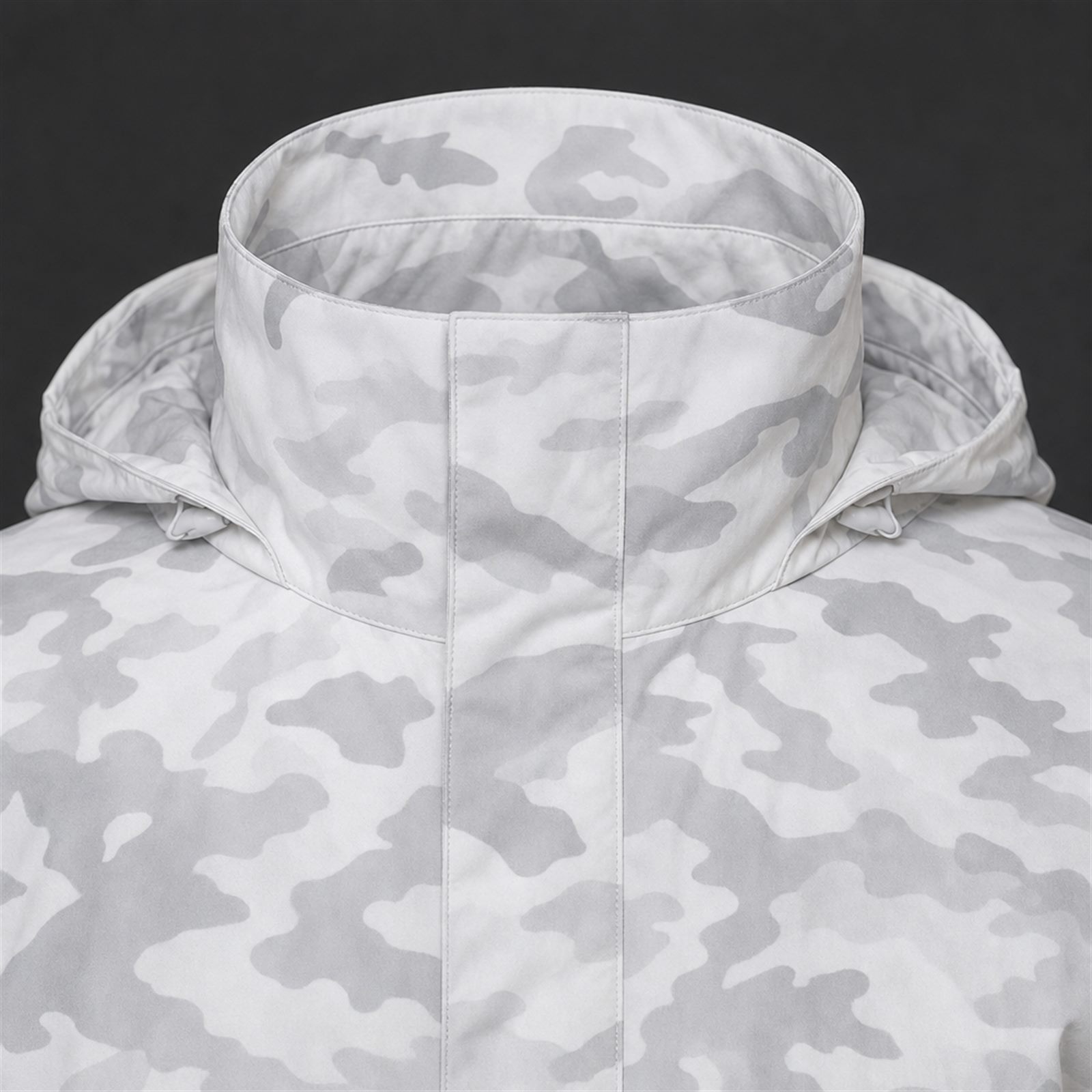

Hood interface
The hood is developed with the collar so the two work as one unit: volume adjustment that holds in wind, a brim that stays out of the eyeline, and clearance for headwear and hearing protection.
Reinforcement at wear points
Shoulders, elbows and hem edges receive reinforcement matched to the wear the buyer reports, rather than a standard patch applied wherever it is convenient.
Labelling and identification
Care labelling, size marking and any issue or asset identification are specified with the buyer, so the garment can be received, stored and reordered without ambiguity.
Features
The 6 functional features of Cold Weather Shell Jacket each exist to solve a specific problem in use, and where a feature is a trade-off rather than a pure gain that is stated.
The shell's dimensions, opening protection and ventilation are set against the layers it will be worn over. A shell developed in isolation is the most common reason a well-built system still feels cold.
Water reaches the body at a small number of predictable places: seams under load, unprotected fronts, cuff and hem openings, pocket edges and hood interfaces. Each is addressed as a construction decision.
Vents are positioned where the wearer can reach them and built so they stay closed when not in use. Ventilation that cannot be operated under equipment is a feature on paper only.
An uninsulated shell is often carried rather than worn. Where the buyer's programme requires it, the shell is developed so it packs small and recovers without permanent creasing at the taped seams.
Hard-shell laminates vary in how much noise and stiffness they add. Where the garment is worn in close-quarters or high-movement roles, that is raised and addressed in fabric selection rather than discovered on issue.
Shell, mid and base fabrics are often different types that take colour differently. Matching across the set is treated as a specific requirement to be agreed and verified, not assumed.
Customization
12 customization lines for Cold Weather Shell Jacket: branding, colour, camouflage and packaging are all part of the specification, and every item is confirmed on the pre-production sample.
Shell specification
Seam treatment
Front closure
Ventilation
Hood
Cuff closure
Hem adjustment

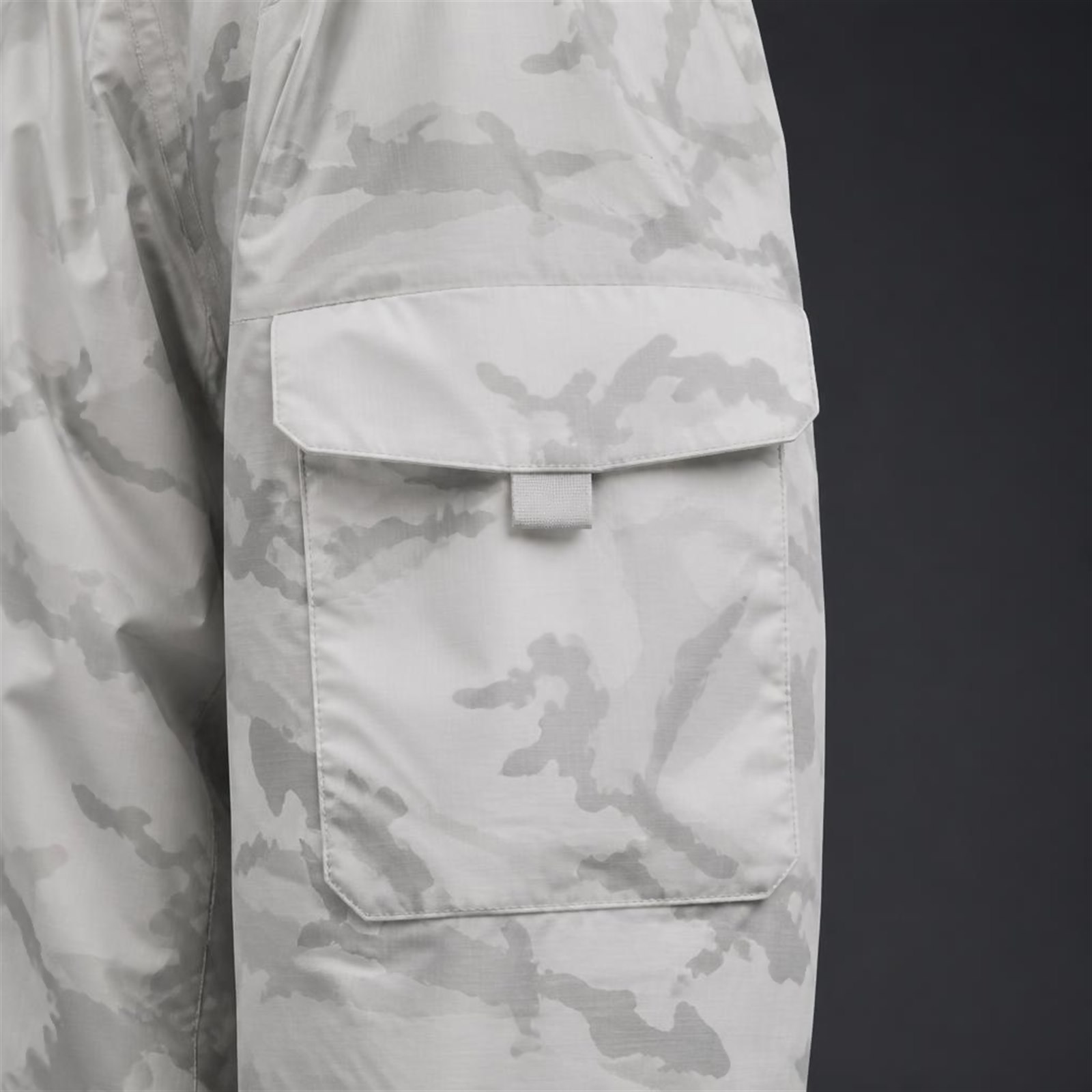

Pockets
Reinforcement
Colour and camouflage
Labelling
Packaging
Colour
Camouflage
Sizing
Shell sizing is developed around the layers the wearer will put underneath it rather than around the outer garment alone. Armhole depth, shoulder width, back length and sleeve length are all agreed against the base layer, mid layer and insulation the buyer issues, and confirmed on a wearer in the full stack. Where the buyer has an existing uniform sizing standard, the shell is developed against that standard so it stays consistent with the rest of the issue rather than introducing a second set of numbers.
Branding
Your pattern, your shell specification, your seam map, your hardware and your packaging. Labels, trims and cartons can be left blank, so the range ships as your own product with your own specification held on file against every repeat order.
Logistics
Sample development
Development of Cold Weather Shell Jacket runs in 7 stages, each risk removed before the next step commits cost.
Specification review
We agree the shell fabric, seam map, closure assembly, venting, hood interface and layering dimensions in writing before anything is cut, including the layer stack the shell has to fit over.
Fabric and hardware selection
Shell options are presented against the buyer's environment — waterproof, water-resistant or breathable wind-resistant — with the trade-offs stated, and closures, adjusters and trims are proposed to match.
Pattern development
The pattern is developed on the buyer's size range with layering allowance built in, and hood, collar, cuff and hem interfaces are treated as part of the pattern rather than added afterwards.
Proto sample
A first sample proves fit over the layer stack, opening placement, vent reach and hood behaviour. Findings are reviewed with the buyer before the specification is frozen.
Fit sample
A revised sample is produced with the agreed corrections and assessed on a wearer in the full composition, including gloves and headwear where the buyer supplies them.
Size set
A set across the size range is produced for measurement confirmation so that grading, not only the base size, is approved before bulk.
Sealed sample
The approved sample is sealed and retained as the reference for inline and final inspection, including the seam map and closure hardware.
Bulk production
7 stages of bulk production for Cold Weather Shell Jacket — where the approved specification is either held or lost.
Material receipt and inspection
Shell lot, finish, seam tape, closures and trims are checked against the sealed sample before cutting. Colour is checked against the approved standard in daylight.
Cutting
Panels are cut to the approved pattern with print or camouflage placement controlled on the marker so the pattern breaks consistently across garments.
Seam and assembly
Seams are constructed to the approved map, with sealed runs completed and inspected before the garment is closed, because a failed seal cannot be corrected afterwards.
Closure and vent assembly
Front closure, chin guard, vents and pocket closures are assembled and checked for function under load, including operation with gloves where specified.
Inline inspection
Garments are measured against the approved tolerances at defined points during the run rather than only at the end, so a drift is caught while it can still be corrected.
Finishing and labelling
Care labels, size marking and any issue identification are applied to the agreed positions, and loose threads, hardware function and seam appearance are finished to the sealed sample.
Final inspection and packing
Final inspection is carried out against the approved specification and AQL agreed with the buyer, and approved goods are packed and marked to the buyer's carton instructions.
Quality control
The 7 checks applied to Cold Weather Shell Jacket, each measured against an agreed standard rather than against opinion.
Incoming material check
Shell construction and finish, seam tape, closure hardware, adjusters and trims are recorded against the specification, and fabric lots are retained for reference.
Colour verification
Production colour is compared with the approved standard and the sealed sample under agreed lighting, and any shade variation across rolls is recorded before cutting.
Seam and seal inspection
Sealed seam runs are inspected for continuity and adhesion before assembly is closed, since the failure cannot be seen or corrected on a finished garment.
Measurement check
Critical dimensions — chest, shoulder, sleeve length, back length, cuff and hem opening — are measured against the approved tolerances during the run.
Function testing of closures and vents
Zips, flaps, adjusters and vent closures are operated repeatedly on sampled garments to confirm they open, close and stay closed under the conditions of use.
Fit check on the layer stack
Sampled shells are checked over the intended base, mid and insulation layers to confirm that layering allowance has been achieved and that no opening is compressed closed.
Final inspection and records
Final inspection results, inspection records and retained samples stay with the order, so a repeat order is produced against evidence rather than against memory.
Specifications
19 specification rows for Cold Weather Shell Jacket: only confirmed items are listed, so a row that depends on your programme is omitted rather than filled with an estimate.
| Product type | Uninsulated cold weather outer shell jacket |
|---|---|
| Layer position | Outermost layer of a base, mid, insulation and shell composition |
| Length | Hip or mid-hip, to buyer specification |
| Shell | Laminated waterproof, water-resistant coated ripstop, breathable wind-resistant softshell or poly-cotton, to specification |
| Seam treatment | Sealed, taped or bound to the buyer's seam map |
| Front closure | Single or two-way zip with internal storm flap, optional external flap and chin guard |
| Ventilation | Underarm, chest or back vents, or two-way front opening, to specification |
| Hood | Fixed, detachable or stowable, with volume adjustment and shaped brim; or high collar without hood |
| Cuff closure | Adjustable hook-and-loop, elasticated with adjuster or snap, sized to the issued glove |
| Hem adjustment | Internal drawcord, external adjuster or elasticated, to specification |
| Pockets | Chest, sleeve, lower hand and internal security pockets with closures to specification |
| Reinforcement | Shoulders, elbows and hem edges, placed against reported wear points |
| Size range | EU or US runs including extended sizes, cut to layer over the buyer's mid and insulation layers |
| Colour and camouflage | Solid colourways or buyer artwork camouflage, matched to an approved standard |
| Labelling | Woven main label, printed care label, size and issue marking as required |
| Packing | Poly bag, individual carton and buyer-specific cartons |
FAQ
No, and the question is better asked of the whole system rather than the shell. A shell supplies no warmth of its own; how warm the wearer feels is decided by the insulation beneath it, by activity level, wind, humidity, exposure time and how the layers fit. What we can do is specify the shell to the wettest and windiest condition your programme expects and document it, so the specification is repeatable and inspectable.
It depends on the precipitation, not the temperature. For dry cold, a breathable wind-resistant or water-resistant shell is usually the better choice, because a fully waterproof laminate can trap the moisture the wearer produces. Where wet snow, sleet or freezing rain is expected, waterproof construction with sealed exposed seams and storm flaps is the correct specification, and water resistance alone is not enough.
Not necessarily, and sealing everything adds stiffness and cost. Water reaches the body at a small number of predictable places — shoulder and hood seams under load, unprotected fronts, cuff and hem openings. We agree a seam map with the buyer: which runs are sealed, which are critically sealed and which are left plain. What matters is that the map is a documented decision rather than whatever the line did that day.
Enough that the wearer can dump heat during exertion without opening the front in the cold. Underarm vents are the usual starting point; chest vents help where load-bearing equipment blocks the underarm position. The vents also have to be operable with gloves and must stay closed when not in use, which is a hardware decision as much as a pattern one.
That is the first thing we establish. A size chart written for a single temperate garment is one of the most common reasons a cold weather system is rejected after delivery, because the chest and sleeve length that fit over two layers are not the same numbers. We develop the shell against the layer stack the wearer will actually use and confirm it on a wearer in the full composition.
This is one of the harder parts of a cold weather programme, because shell, mid and base layers are usually different fabric types that take colour differently. We treat colour matching across a fabric set as a specific requirement to be agreed and verified on lab dips, and we will tell you where an exact match between two fabric types is not realistic rather than promise it.
